OS Collection – Part 1 – Windows 3.1

Recently I have taken to starting a little collection of PC Operating Systems, starting with Microsoft and IBM full retail boxed copies sourced from the wonderful world of eBay. I have started receiving these copies so I have decided to install them and do a review of the experiences of using them in modern times.

Windows 3.1

Released in 1992 Windows 3.1 was a minor update to Windows 3.0, mainly including Truetype font support and 32-bit Disk Access. It however has became the most popular pre-Windows 95 era Windows OS. I have only managed to get my hands on an OEM copy, so here are a few pics of what comes out of that package.

The Manual
The Manual

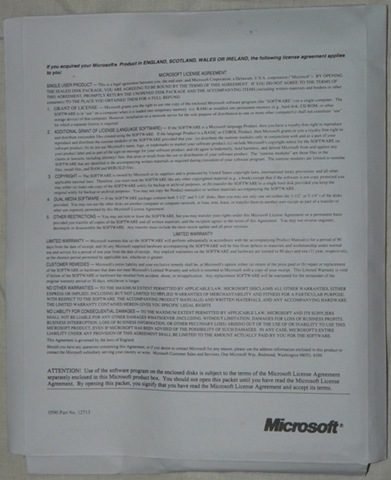

The EULA and Warranty info
The EULA and Warranty info
The Registration booklet
The Registration booklet
The MS contact information card
The MS contact information card

As you can see the manual isn’t some small booklet like we get nowadays, it’s a full instructional manual that will get you started off and guide you though a large part of using the OS. Not too much else here so we will move onto the installation.

Installation
I initially installed this on Virtual PC 2007, that was a big mistake, I don’t know what was causing it but there were serious issues throughout the process, mainly with Windows 3.1 crashing and 9 times out of 10 simply not booting up at all, so instead I have moved over to VMWare 6.03.

Firstly setting up the virtual machine is easy enough, I made sure I set a few settings of my own but the rest of the settings were left at defaults.

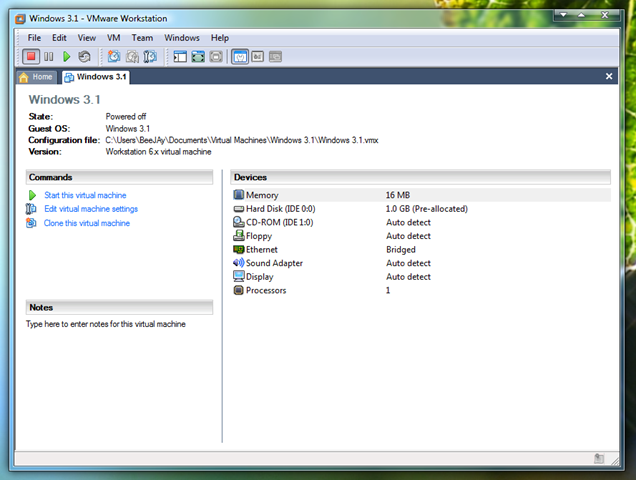

The Virtual Machine
The Virtual Machine

Now before the Windows 3.1 installation, we need to install Dos 6.22, this is fairly straight forward.

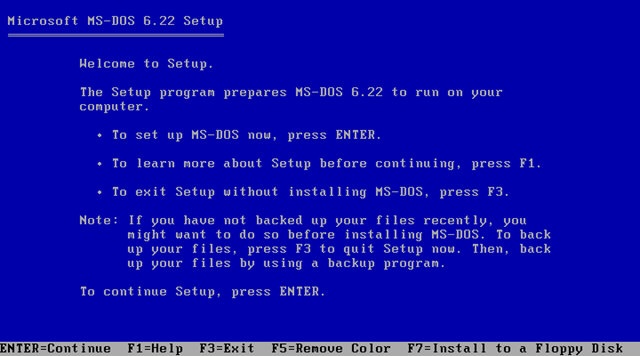

Main installation screen
Main installation screen

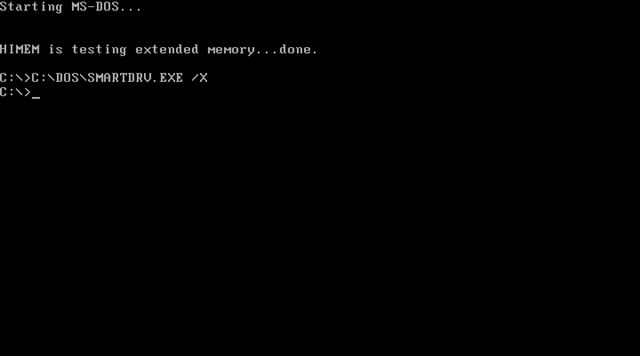

We're restarted and up and running
We’re restarted and up and running

Well that was quick and painless, now for Windows 3.1

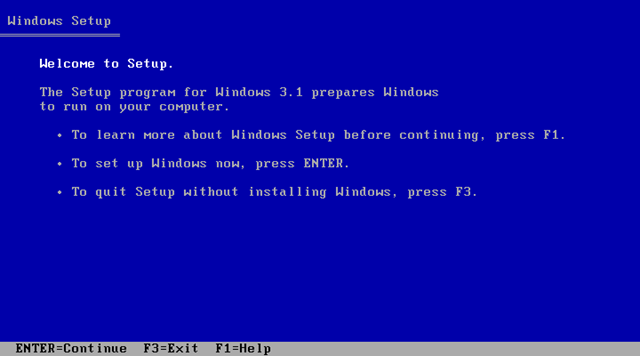

The text based installation screen
The text based installation screen

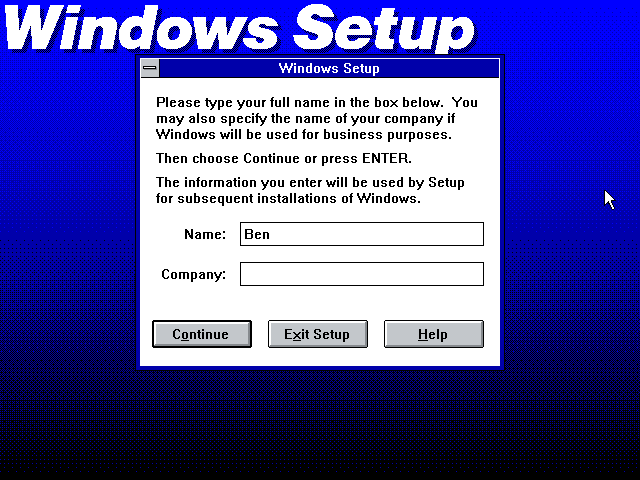

The main setup screen
The main setup screen

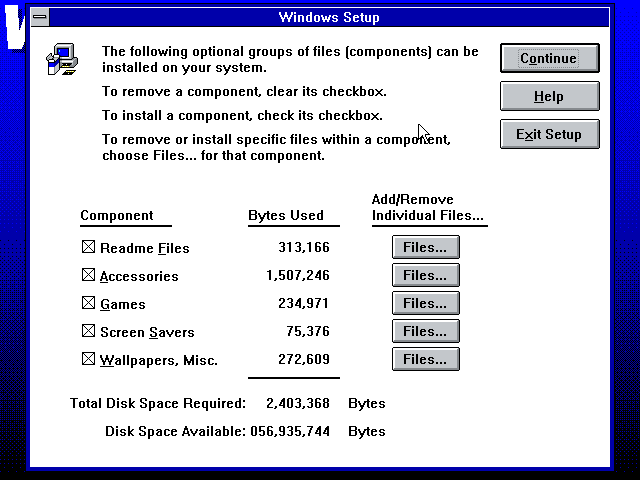

Choosing applications
Choosing applications

Windows 3.1 setup is fairly easy to go through, choosing the windows applications was also fairly easy as there was no chance of getting near the 1GB limit on the virtual drive, on top of this there’s more customization here than in most of the Windows Operating Systems, notice by the next screen Windows sets up it’s own settings in config.sys and autoexec.bat, but doesn’t actually add itself to run at bootup, this was used to my advantage to do a bit of maintenance in those files.

Configuration

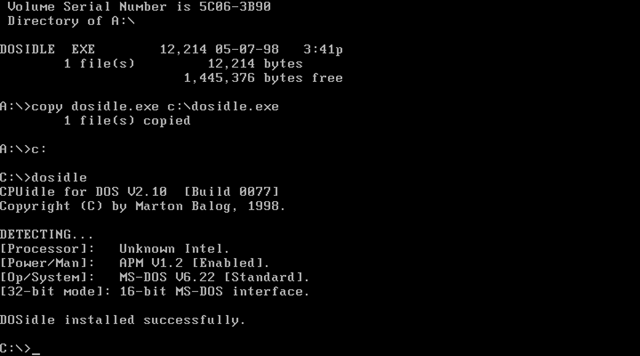

Firstly there is dosidle, testing for now
Firstly there is dosidle, testing for now

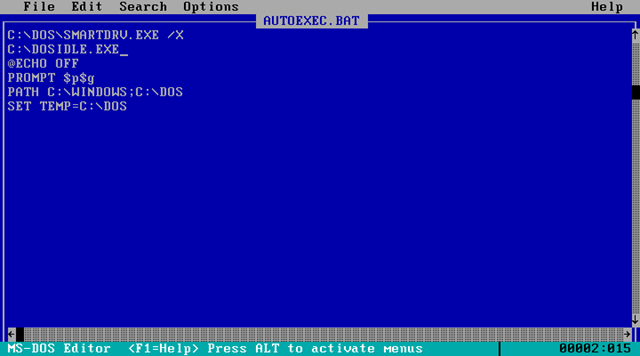

Adding dosidle to autoexec
Adding dosidle to autoexec

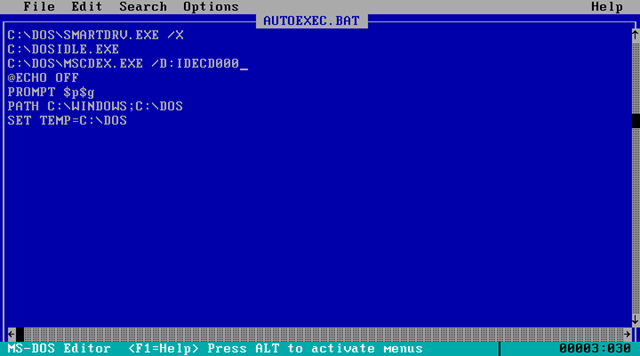

Also adding in mscdex, for CDs
Also adding in mscdex, for CDs

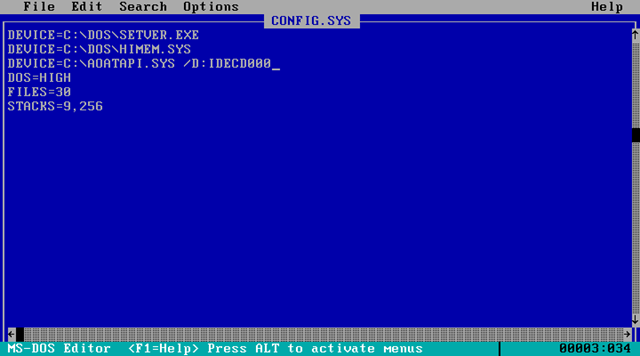

Editing config.sys for mscdex
Editing config.sys for mscdex

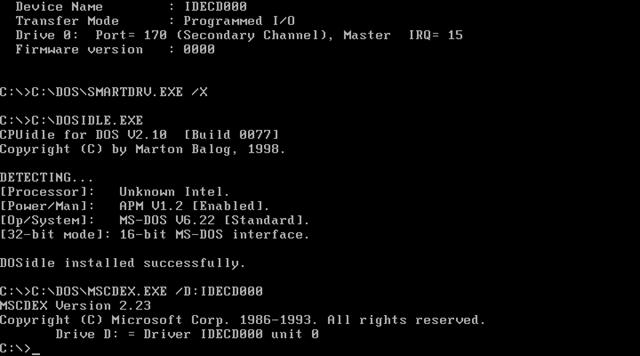

Restarting, both dosidle and mscdex running perfectly
Restarting, both dosidle and mscdex running perfectly

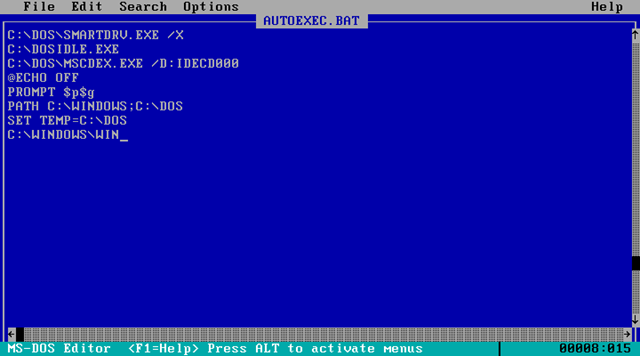

Finally adding Windows to autoexec
Finally adding Windows to autoexec

Firstly by default MS-DOS does not idle the CPU, resulting in high CPU usage for the PC running it, dosidle allows it to do this, adding it to autoexec.bat allows it to run at startup before windows. MSCDEX is the DOS CD management program, it must be setup in config.sys and autoexec.bat, what isn’t shown in those pictures is the copying of the driver AOATAPI.SYS to the root of C:\. Once they were done, a quick reboot shows they are both working and windows is ready to start, adding win to autoexec.bat allows windows to start at bootup after MSCDEX and dosidle. I would later do a bit of editing of these files when attempting to get sound an networking working, as well as adding in of emm386 to config.sys allowing extended memory access (this was for networking using up what back then must have been ridiculous amounts of memory. Now to start Windows.

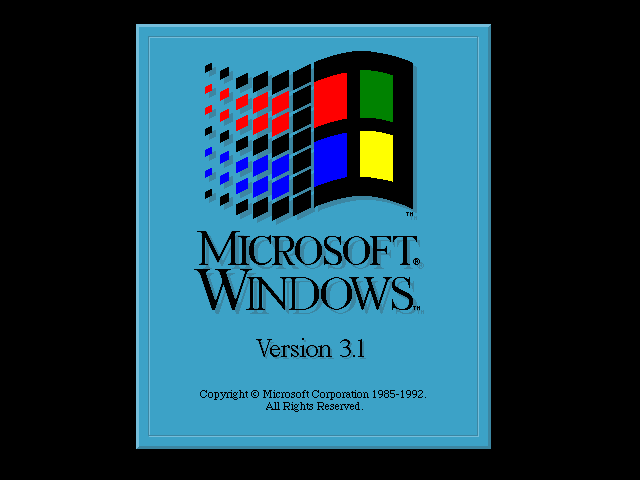

Here we have the classic startup screen
Here we have the classic startup screen

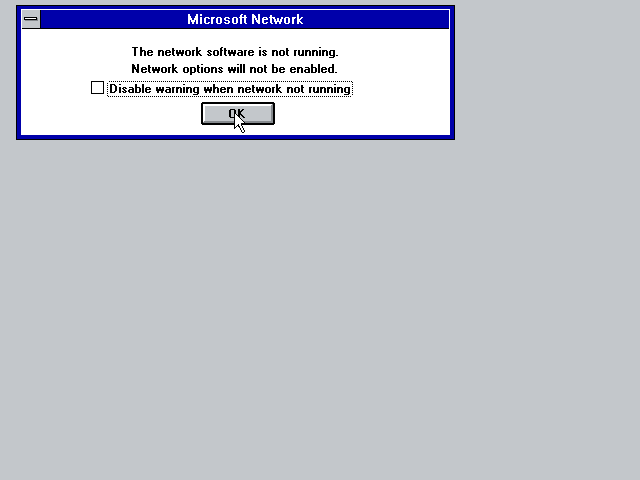

Oops, no networking
Oops, no networking

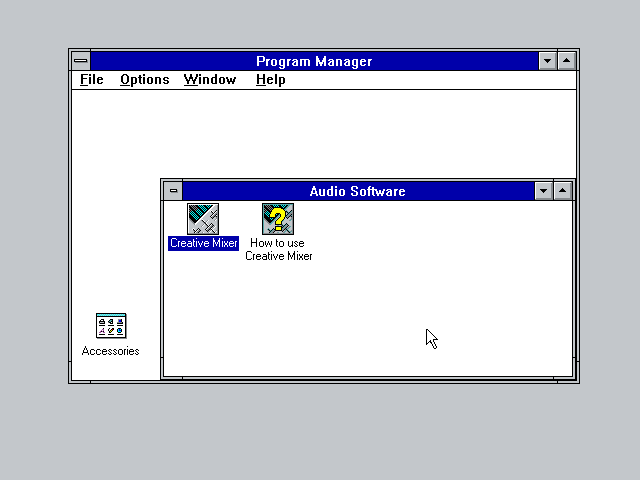

VMWare audio simulation
VMWare audio simulation

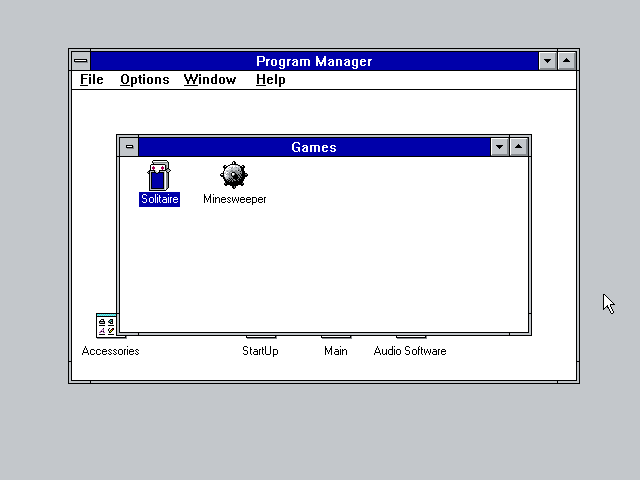

A whole 2 exciting games
A whole 2 exciting games

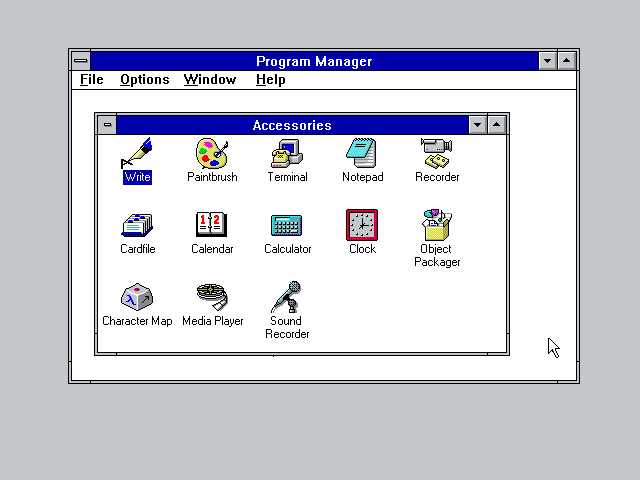

More accessories than games, truly a workstation
More accessories than games, truly a workstation

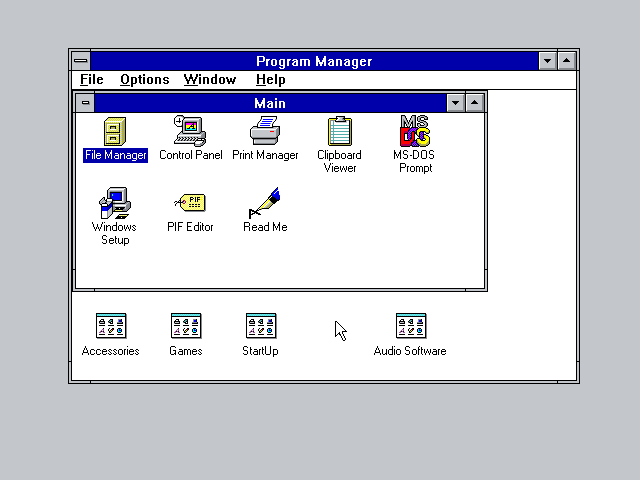

Main, where I spent most of my time getting things to work
Main, where I spent most of my time getting things to work

A whole 2 seconds boot time, that’s something you just don’t get with a modern OS, though it is running on something that would have been a supercomputer back then. I installed networking during setup however it requires a bit more than that to work correctly, Windows 3.1 didn’t have the more sophisticated networking that Windows For Workgroups had, however did have the ability to browse shares though File Manager. As VMWare’s virtual sound card isn’t available in Windows 3.1, a setting change allows a Soundblaster 16 compatible virtual card instead, the installer is dos based and worked well, sound works correctly although apparently MIDI is not available. As of this stage Windows is up and ready for action, just to show that networking is working fine I installed the MS Network client for DOS.

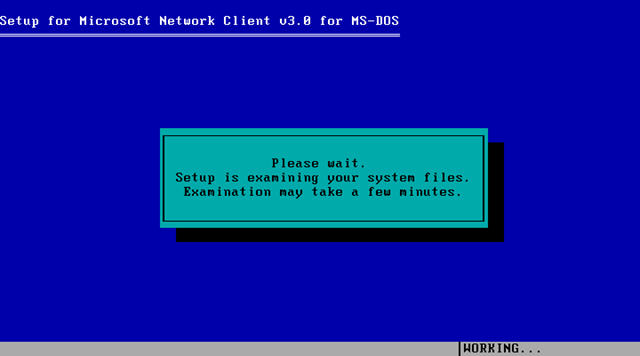

Here is the Setup program
Here is the Setup program

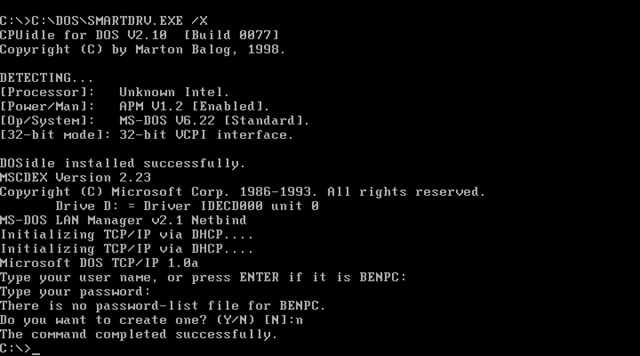

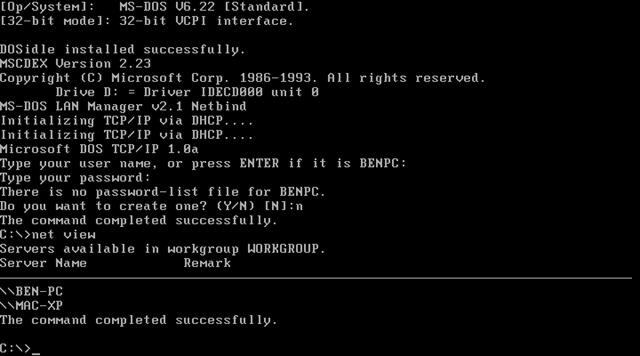

Networking working correctly
Networking working correctly
As you can see, shares are available
As you can see, shares are available

MS Network client installed the network card driver for VMWare as well as TCP/IP and the assorted tools we still use today. This is the second time I installed it, the first time it caused DOS to run out of memory and it couldn’t do DHCP, I uninstalled it and set up EMM386 as I stated near the start, removed a few things and reinstalled it. NET VIEW worked correctly and if I remembered the right syntax for NET USE I would have possibly been able to map a network drive for use in Windows 3.1.

Conclusion
While I didn’t install any other software, provided there were enough installed I would probably have been able to use it for most of today’s activities, of course the obvious security issues and the fact that the last browser released for it can’t display most websites today, if you’re willing to do some serious coding I don’t see what’s stopping you.
Windows 3.1 always has it’s place, mainly at the bottom of older games as a minimum system requirement, however it was quite powerful in it’s day, the truth is it is incredibly stable and fast and when the main requirement is word processing nobody needed to go anywhere else.

Well that’s it for now, I have another package here now so It’s time to get started on the next part.

Published by

TechGremlin

Owner and main content writer.

6 thoughts on “OS Collection – Part 1 – Windows 3.1”

  1. That was a great demostration on how to get win 3.1 working in VMware WS no doubt, but you missed something quite important and it is how to install DOS in the virtual machine ? …I’ve tried a lot of times but it seems i was outta luck… a little help would be appreciated , thanks in advance.

  2. Hi Josh,

    I’ve realised I should really have demonstrated installing DOS first as it can go wrong fairly quickly.

    Using version 7 is not recommended, make sure you install using FAT, not FAT32 as the file system and keep your partition size low, otherwise you’ll run into problems with Windows 3.1. You should be fine with all the other settings during installation left at their defaults. If it’s a new virtual machine you will have to use fdisk and format the drive before installing DOS, instructions on both are available on quite a few websites.

    I have noticed that there are not too many tutorials, or at least not recent ones available for installing DOS in VMWare but a good place to look is YouTube.

    If you’re still looking for help I will be whipping up a tutorial just for DOS and putting it up in the next few days.

    If there’s any errors you are experiencing or questions you need to ask just comment here and ill get back to you.

  3. As VMWare’s virtual sound card isn’t available in Windows 3.1, a setting change allows a Soundblaster 16 compatible virtual card instead, the installer is dos based and worked well

    how to modif the setting file of vmware, could you tell me more clearly? thanks!
